වීආර්එස්එෆ් නිරවද්‍ය ග්‍රහ ගියර් පෙට්ටිය

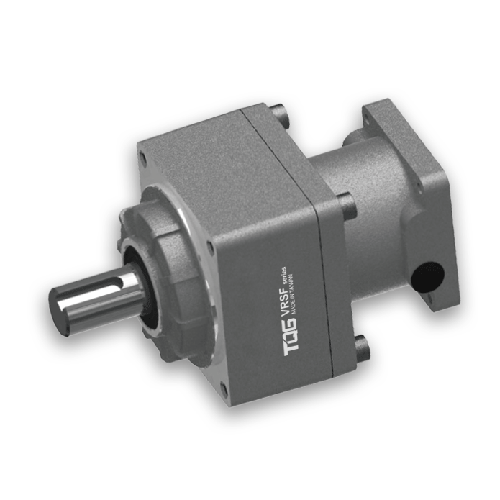

VRSF PRECISION PLANETARY GEARBOXපිළිබඳ දළ විශ්ලේෂණය VRSF Planetary Gear Reducer

  • Lightweight and compact design
  • Lowinternal inertia moment
  • High-precision type less than 0.05°of clearance
  • High rigiditythank to alloyed steel nitride hard gear surface
  • Helical gear designed is used to improve reducer precision
  • Free maintenance & handy installation
හැදින්වීමපිරිවිතර වගුවඅදාළ පිටුව

Indication of Model Numbers of VRSF Speed Reducers

විස්තරය VRSF Precision Planetary Gearbox

VRSF series precision planetary gear reducer adopts the principle of planetary transmission design, featured of high precision, high rigidity, high load, high efficiency, low vibration, low noise and low temperature rise, etc. It is suitable for all brands of servo motor and stepper motor on the market. VRSF speed reducer gearbox is a kind of flange input inline gearbox which features of a square frame, high precision helical gears and integral structural designed of output planet carrier to ensure high torque and rigidity.

විශේෂාංග VRSF Precision Speed Reducer

1. Ultra-quiet speed reducer. Use helical gears instead of conventional spur gears. Noise reduction by 10% compared to previous gear box.
2. This series of planetary gear reducers are featured with high precision, low backlash (≤3arcmin), and accurate positionin, which can fully demonstrate the performance of high precision servo motor.
3. Low pulse, smooth rotation. Use of helical gears to achieve low pulsation and smooth rotation. It is very suitable for medicine filling equipment, medical pumps and other products
4. Advantage of 22mm is based on the demand for lightweight design. Angular dimension is 98mm (other companies with the same model is 120mm). Miniaturized design of VRSF speed reducer effectively respond to continuously lightweight miniaturized servo motors.
5. The assembly environment is excellent to provide high quality planetary gearbox. Assembled in a clean room, TQG can provide high-quality speed reducers.
6. Free maintenance & flexible installation . Long life lubricant is used and do not need to be replaced. At the same time, it adopts closed filling structure and free installation direction.
7. Perfect anti-leakage measures. Implement shell impregnation treatment, air leakage test, etc., and adopt a comprehensive anti-leakage measures.
8. Equivalent to IP65 waterproof requirements. Take waterproof measures to give full play to the performance of the reducer in any environment.
9. Can be mounted on each company’s miniature servo motor

Application of VRSF precision planetary gearbox

It is widely used in printing machinery, packaging machinery, food machinery, pharmaceutical machinery and other industries, CNC machine tools, machine tool transformation, packaging machinery and military industry, such as the injection robot.

How to install VRSF Planetary Gearbox

1. Wipe the rust inhibitor and oil on the motor shaft.

2. Remove the rubber cap, rotating the shaft, and the head of the bolt is matched with the rubber cover hole. Check if it is loose

3. Gently insert the motor into the shaft (unobstructed and smooth insertion). Pay close attention to the fact that the motor cannot be inserted obliquely .

4. Install the motor on the reducer and tighten the bolts with the specified torque.

5. Use a torque wrench or the like to tighten the positioning bolts into the force shaft with the specified torque.

6. Press the rubber cap. The above is completed.

Model No.UnitStageRatioVRSF060VRSF080VRSF100VRSF125
Rated Output TorqueNm1354112165286
448110146255
545108160264
741105149245
1040100141234
21554112165286
2048110146255
2545108160264
3041112165286
3541105149245
4039110146255
5045108160264
7041105149245
10040100141234
Max. Output TorqueNm1,23-1003 Times of Normal Output Torque
Rated Input SpeedRpm1,23-1003000300030003000
Max. Input SpeedRpm1,23-1005000500050005000
Micro Backlash P1Arcmin13-10≤5≤5≤5≤5
212-100≤7≤7≤7≤7
Precision Backlash P2Arcmin13-10≤8≤8≤8≤8
212-100≤10≤10≤10≤10
Torsional RigidityNm/arcmin1,23-1005121423
Max. Radial Forceඑන්1,23-100800120032005220
Max. Axial Forceඑන්1,23-10040060016002600
Service LifeHr1,23-10021000hrs
Efficiency%13-10≥97%
215-100≥94%
WeightKg13-101.21.63.767.43
215-1002.12.85.9210.3
Operating Temperature1,23-100(-25℃~+90℃)
Lubrication1,23-100Synthetic Grease
Protection Class1,23-100IP65
Mounting Position1,23-100Any Direction
Noise LeveldB(A)1,23-100≤60≤62≤65≤67
