PER Right Angle Precision Planetary Gearbox

Overview of PER Right Angle Gearbox

Economy right angle gearbox
Light in weight and high efficiency
Space-saving servo gearbox
Low noise & low backlash
Optimized transmission inertia
Low temperature increase
Adapt to various motor shaft diameters

GirişÖzellikleri tablosuİlgili Sayfa

Indication of Model Numbers of PER Speed Reducers

Description of PER Right Angle planetary Şanzımanlar

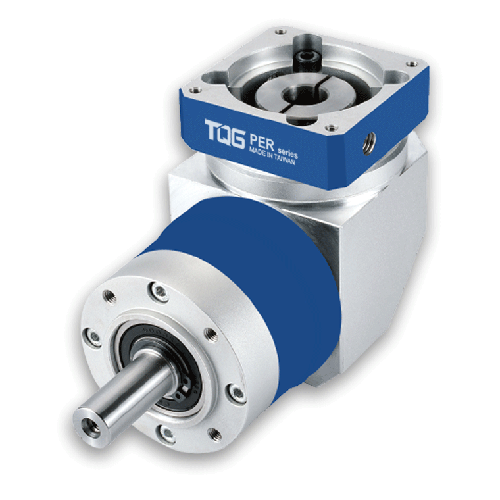

The TQG PER series is an economy high precision right angle planetary reducer. The optimized design of TQG PER planetary gearehead features of higher accuracy, more compact and lighter weight, with various installation methods of motor. Carbon steel and aluminum construction of the main body meet the industrial standard. High precision connected housing enable PER planetary gearbox with good stability and solidity. And the laser welded pinion makes the two parts have the highest concentricity. Smooth, quiet operation and accuracy of PER gearbox thanks to its low-profile planetary gears and precision spiral bevel right angle gears. If you don’t need right angle gearbox, TQG another type of inline gearbox PLE series is your good choice for limited budget.

Features of PER Precision Economy Right Angle Planetary Gearbox

1. Using of spiral bevel gear , PER series speed reducer can be mounted with the motor at 90 degree away from the gearbox if space-saving is needed.
2. High positioning precision: with precision grinding gear, the surface of tooth is smooth and the tooth profile is precise.
3.Low energy consumption and superior performance.
4.The precision planetary gearbox is fully enclosed with high performance grease makes it maintenance free for life.
5. Small vibration, low noise and high energy saving.
6. This series of products have a lot of motor combination, installation position and structure scheme, can be selected according to the actual needs.

Model numarası.	birim	Sahne	oran	PER040	PER060	PER080	PER120	PER160
Nominal Çıkış Torku	nm	1	3	17	28	112	165	423
			4	15	38	110	146	364
			5	14	40	108	160	423
			7	13	35	105	149	358
			10	12	25	100	141	293
		2	15	17	28	112	165	423
			20	15	38	110	146	364
			25	14	40	108	160	423
			30	13	28	112	165	423
			35	13	35	105	149	358
			40	12	38	110	146	364
			50	14	40	108	160	423
			70	13	35	105	149	358
			100	12	25	100	141	293
Maks. Çıkış Tork	nm	1,2	3-100	3 Kez Normal Çıkış Torku
Nominal Giriş Hızı	devir	1,2	3-100	3000	3000	3000	3000	2500
Maks. Giriş hızı	devir	1,2	3-100	5000	5000	5000	5000	3600
Hassas Boşluk P1	kırmızı, mavi plakalar	1	3-10	≤8	≤8	≤8	≤8	≤8
Hassas Boşluk P1	kırmızı, mavi plakalar	2	12-100	≤10	≤10	≤10	≤10	≤10
Standart Boşluk P2	kırmızı, mavi plakalar	1	3-10	≤11	≤11	≤11	≤11	≤11
Standart Boşluk P2	kırmızı, mavi plakalar	2	12-100	≤13	≤13	≤13	≤13	≤13
Burulma sertliği	Nm / kırmızı, mavi plakalar	1,2	3-100	3	6	12	22	50
Maks. Radyal Kuvvet	N-	1,2	3-100	320	460	1300	3200	6520
Maks. Eksensel kuvvet	N-	1,2	3-100	160	230	660	1600	3260
Hizmet ömrü	sa	1,2	3-100	20000hrs
verim	%	1	3-10	≥97%
verim	%	2	15-100	≥94%
Ağırlık	Kilogram	1	3-10	0.73	0.99	2.1	4.98	18.2
Ağırlık	Kilogram	2	15-100	1.05	1.46	3.2	6.92	24.9
Çalışma sıcaklığı	℃	1,2	3-100	(-25 ℃ ~ 90 ℃)
Yağlama		1,2	3-100	Sentetik Gres
Koruma sınıfı		1,2	3-100	IP65
Montaj konumu		1,2	3-100	Herhangi bir yön
Gürültü seviyesi	dB (A)	1,2	3-100	≤62	≤63	≤65	≤67	≤68
